VoiceIt API 3.0 Web SDK

This repository contains an example web demonstration of VoiceIt's API 3.0 in the browser with a PHP, NodeJS, or Go backend. See Incorporating the SDK for instructions on integrating the SDK into your own project.

• Backend Options
• Supported Browsers
• UI Screenshots
• Web Example
  • Getting Started
    • The Config File
    • Making Changes to the Frontend
    • Running the Example
• Incorporating the SDK
  • Backend Implementation
    • Initializing the Base Module
    • Getting the Result
    • Generating a Secure Token
  • Frontend Implementation
    • Initializing the Frontend
    • Setting Theme Color
    • Setting the Secure Token
    • Enrollment and Verification Methods
  • Implementation Diagram
  • Changing the Content Language
• Getting Help

Backend Options

Choose one of the following for the server-side implementation:

• PHP: PHP 8.0+ with a compatible server such as Apache
• Node: Node 18+
• Go: Go 1.17+

Supported Browsers

Desktop:

Browser	Minimum Version	Windows	macOS	Linux
Google Chrome	55+	7+	10.12+	64-bit
Firefox	52+	7+	10.12+	64-bit
Safari	14.1+	—	10.15+	—
Microsoft Edge	79+	10+	10.12+	64-bit
Opera	42+	7+	10.12+	64-bit

Mobile:

Browser	Minimum Version	Android	iOS
Google Chrome	55+	6.0+	14.0+
Safari	14.5+	—	14.5+
Firefox	52+	6.0+	14.0+

Note: Internet Explorer is not supported. The SDK requires modern browser APIs including MediaRecorder, async/await, and getUserMedia.

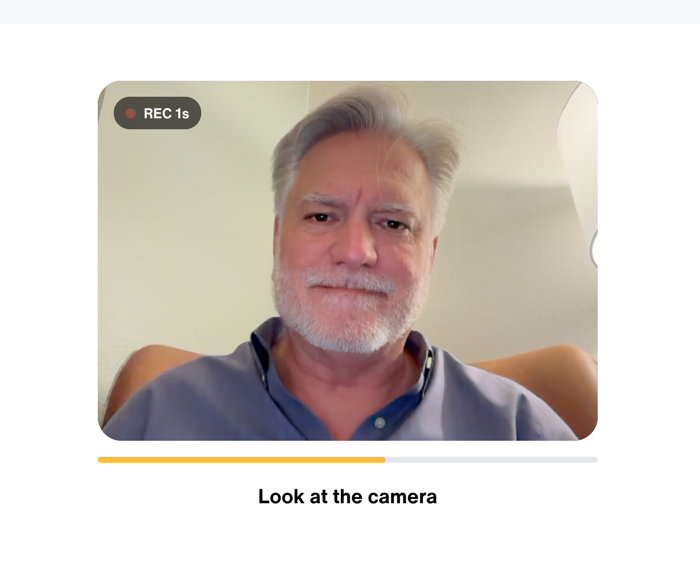

UI Screenshots

Web Example

Getting Started

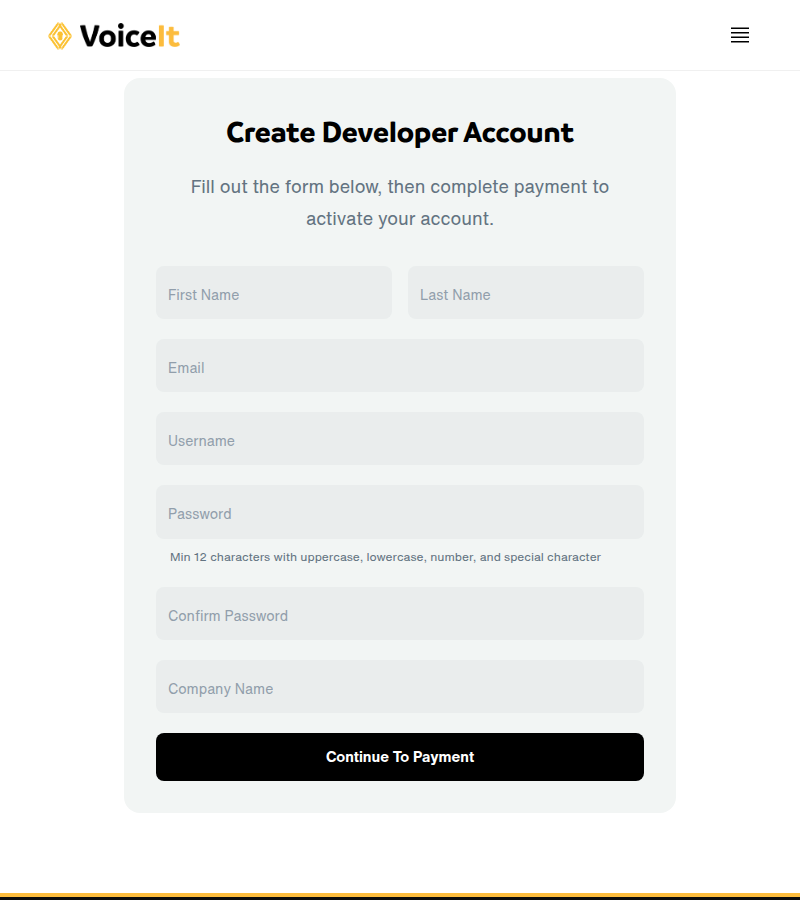

Sign up at voiceit.io/pricing to get your API Key and Token, then log in to the Dashboard to manage your account.

The Config File

PHP

Navigate to voiceit3-php-server-example/config.php. Replace API_KEY_HERE with your API Key, API_TOKEN_HERE with your API Token, and TEST_USER_ID_HERE with a userId.

NodeJS

Navigate to voiceit3-node-server-example/config.js. Replace API_KEY_HERE with your API Key, API_TOKEN_HERE with your API Token, and TEST_USER_ID_HERE with a userId.

Go

Navigate to voiceit3-go-server-example/config.go. Replace [API_KEY_HERE] with your API Key, [API_TOKEN_HERE] with your API Token, and [TEST_USER_ID_HERE] with a userId.

Making Changes to the Frontend

The frontend source files are in the voiceit3-frontend/ folder, compiled using webpack into the voiceit3-dist/ folder. Run the compile script from the voiceit3-frontend/ directory to rebuild and copy voiceit3.min.js to all example server directories:

cd voiceit3-frontend && ./compile.sh

Running the Example

PHP

Start your server (Apache), pointing to voiceit3-php-server-example as the document root.

NodeJS

Packages are hosted on GitHub Packages. Add the registry to your .npmrc:

@voiceittech:registry=https://npm.pkg.github.com

Then install:

cd voiceit3-node-websdk && npm install
cd ../voiceit3-node-server-example && npm install
npm start

Go

cd voiceit3-go-server-example && go run .

Visit your server at port 3000. Set DEMO_EMAIL and DEMO_PASSWORD in the example server's .env (see .env.example) — those are the credentials the example /login endpoint will accept. First complete enrollment(s), then test verification. You will need to grant microphone and camera permissions.

Incorporating the SDK

Each type (voice, face, and video) and each action (enrollment and verification) can be implemented independently. A backend and frontend implementation is required.

Backend Implementation

Initializing the Base Module

PHP

require('voiceit3-php-websdk/voiceit3webbackend.php');
$myVoiceIt = new VoiceIt3WebBackend("YOUR_API_KEY", "YOUR_API_TOKEN");

$voiceItResultCallback = function($jsonObj){
  $callType = $jsonObj["callType"];
  $userId = $jsonObj["userId"];
  if($jsonObj["jsonResponse"]["responseCode"] == "SUCC"){
    // User verified - start session
  }
};

$myVoiceIt->InitBackend($_POST, $_FILES, $voiceItResultCallback);

NodeJS

const VoiceIt3WebSDK = require('voiceit3-node-websdk');
const multer = require('multer')();

app.post('/example_endpoint', multer.any(), function (req, res) {
  const myVoiceIt = new VoiceIt3WebSDK.Voiceit3("YOUR_API_KEY", "YOUR_API_TOKEN", {
    tempFilePath: "/tmp/"
  });
  myVoiceIt.makeCall(req, res, function(jsonObj){
    const callType = jsonObj.callType.toLowerCase();
    const userId = jsonObj.userId;
    if(jsonObj.jsonResponse.responseCode === "SUCC"){
      // User verified - start session
    }
  });
});

Go

import websdk "github.com/voiceittech/voiceit3-web-sdk/voiceit3-go-websdk"

var backend websdk.WebSDK

func init() {
  backend.Initialize("YOUR_API_KEY", "YOUR_API_TOKEN", 1)
}

router.Post("/example_endpoint", func(w http.ResponseWriter, r *http.Request) {
  ret, err := backend.MakeCall(r)
  if err != nil {
    // Handle error
    return
  }
  bytes, _ := json.Marshal(ret)
  w.Write(bytes)
})

Getting the Result

After verification, the callback receives:

{
  "callType": "faceVerification",
  "userId": "usr_********************",
  "jsonResponse": {
    "faceConfidence": 100,
    "message": "Successfully verified face for user",
    "timeTaken": "2.249s",
    "responseCode": "SUCC",
    "status": 200
  }
}

Generating a Secure Token

PHP

require('voiceit3-php-websdk/voiceit3webbackend.php');
$myVoiceIt = new VoiceIt3WebBackend("YOUR_API_KEY", "YOUR_API_TOKEN");
$createdToken = $myVoiceIt->generateTokenForUser($VOICEIT_USERID);

echo json_encode([
  "ResponseCode" => "SUCC",
  "Token" => $createdToken
]);

NodeJS

const VoiceIt3WebSDK = require('voiceit3-node-websdk');

app.get('/login', function (req, res) {
  const createdToken = VoiceIt3WebSDK.generateTokenForUser({
    userId: VOICEIT_USERID,
    token: "YOUR_API_TOKEN",
    sessionExpirationTimeHours: 1
  });

  res.json({
    'ResponseCode': 'SUCC',
    'Token': createdToken
  });
});

Go

tok, err := backend.GenerateTokenForUser(VOICEIT_USERID)
if err != nil {
  // Handle error
  return
}

ret := map[string]string{
  "ResponseCode": "SUCC",
  "Token": tok,
}
bytes, _ := json.Marshal(ret)
w.Write(bytes)

Frontend Implementation

Initializing the Frontend

Include the minified JavaScript file:

<script src='/voiceit3.min.js'></script>

Initialize:

var myVoiceIt = new VoiceIt3.initialize('/example_endpoint/', 'en-US');

Setting Theme Color

myVoiceIt.setThemeColor('#FBC132');

Setting the Secure Token

myVoiceIt.setSecureToken('TOKEN_FROM_BACKEND');

Enrollment and Verification Methods

Voice Enrollment

myVoiceIt.encapsulatedVoiceEnrollment({
  contentLanguage: 'en-US',
  phrase: 'Never forget tomorrow is a new day',
  completionCallback: function(success, jsonResponse) {
    if (success) {
      alert('Voice Enrollments Done!');
    }
  }
});

Face Enrollment

myVoiceIt.encapsulatedFaceEnrollment({
  completionCallback: function(success, jsonResponse) {
    if (success) {
      alert('Face Enrollment Done!');
    }
  }
});

Video Enrollment

myVoiceIt.encapsulatedVideoEnrollment({
  contentLanguage: 'en-US',
  phrase: 'Never forget tomorrow is a new day',
  completionCallback: function(success, jsonResponse) {
    if (success) {
      alert('Video Enrollments Done!');
    }
  }
});

Voice Verification

myVoiceIt.encapsulatedVoiceVerification({
  contentLanguage: 'en-US',
  phrase: 'Never forget tomorrow is a new day',
  needEnrollmentsCallback: function() {
    alert('A minimum of three enrollments are needed');
  },
  completionCallback: function(success, jsonResponse) {
    if (success) {
      alert('Successfully verified voice');
    }
  }
});

Face Verification

myVoiceIt.encapsulatedFaceVerification({
  completionCallback: function(success, jsonResponse) {
    if (success) {
      alert('Successfully verified face');
    }
  }
});

Video Verification

myVoiceIt.encapsulatedVideoVerification({
  contentLanguage: 'en-US',
  phrase: 'Never forget tomorrow is a new day',
  needEnrollmentsCallback: function() {
    alert('A minimum of three enrollments are needed');
  },
  completionCallback: function(success, jsonResponse) {
    if (success) {
      alert('Successfully verified face and voice');
    }
  }
});

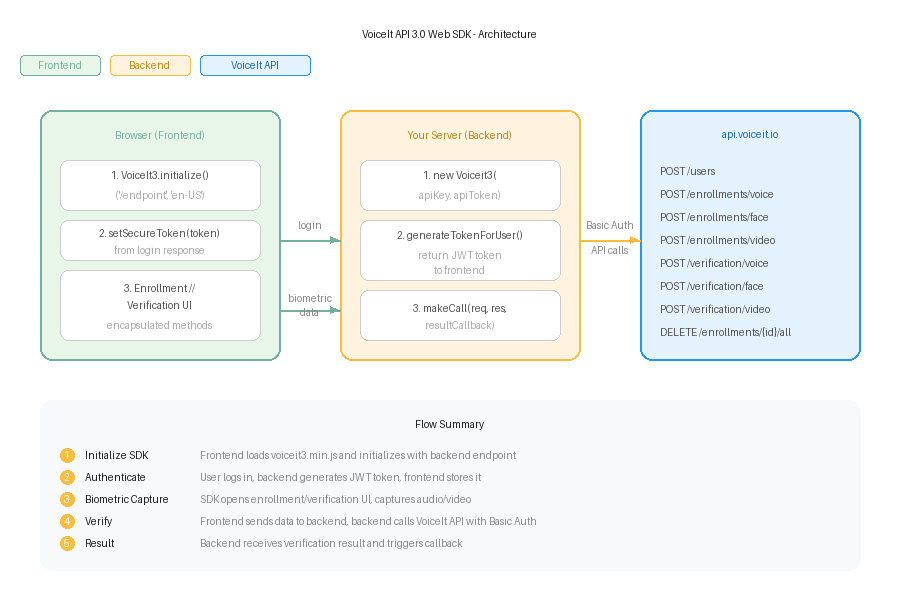

Implementation Diagram

Changing the Content Language

The content language is configured in each backend's config file:

• PHP: Set CONTENT_LANGUAGE in voiceit3-php-server-example/config.php
• NodeJS: Set CONTENT_LANGUAGE in voiceit3-node-server-example/config.js
• Go: Set CONTENT_LANGUAGE in voiceit3-go-server-example/config.go

Documentation

For detailed API documentation, visit voiceit.io/documentation.

Support

If you find this SDK useful, please consider giving it a star on GitHub — it helps others discover the project!

License

voiceit3-web-sdk is available under the MIT license. See the LICENSE file for more info.
