SpecTwin

SpecTwin is a modular Python application for X-ray emission spectroscopy workflows. It combines:

• Digital Twin simulation based on xrt
• AutoFDMNES workflows for material-aware spectral simulation
• Data visualization and processing tools
• Subpixel/event analysis utilities
• Dear PyGui based graphical interfaces

The repository is currently structured as a desktop application and is mainly intended for Windows use, especially because it includes an fdmnes_win64.exe executable.

---

Video demos

The following videos show the main workflows currently implemented in SpecTwin:

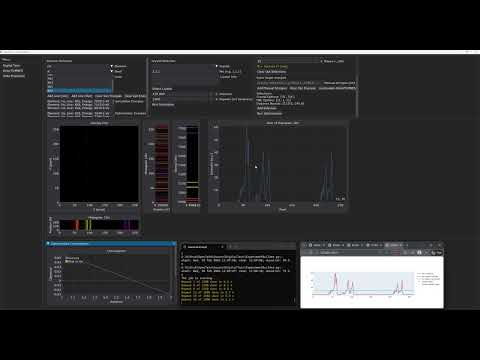

Digital Twin workflow

Demonstration of the digital twin workflow for simulation-driven spectrometer setup and optimization.

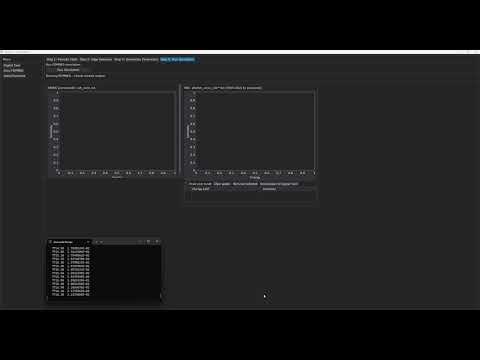

XES simulation workflow

Demonstration of the XES simulation workflow implemented in the AutoFDMNES module.

Repository structure

SpecTwin/
├─ Source/
│  ├─ SpectwinMain.py          # Main application window
│  ├─ StartScreen.py           # Start screen / launcher
│  ├─ AutoFDMNES/              # FDMNES-based material simulation module
│  ├─ DigitalTwin/             # xrt-based digital twin module
│  ├─ DataVisualization/       # plotting and visualization tools
│  ├─ DataAlligning/           # data processing / alignment tools
│  ├─ MergeData/               # merge utilities
│  ├─ SubPixel/                # event/subpixel analysis tools
│  ├─ fonts/
│  └─ img/
└─ xrt_update/
   └─ screens.py               # patched xrt backend file

---

Requirements

Recommended setup:

• OS: Windows 10/11
• Python: a clean virtual environment is strongly recommended
• Git for cloning the repository

Main Python dependencies used by the project include:

• dearpygui
• numpy
• pandas
• scipy
• matplotlib
• plotly
• Pillow
• h5py
• silx
• scikit-optimize
• xraydb
• xrt
• mp-api

---

Installation

1. Clone the repository

git clone <your-gitlab-repo-url>
cd SpecTwin

2. Create and activate a virtual environment

Windows (PowerShell)

python -m venv .venv
.\.venv\Scripts\Activate.ps1

Windows (cmd)

python -m venv .venv
.venv\Scripts\activate

3. Install Python dependencies

You can install the packages manually:

pip install --upgrade pip
pip install -r requirements.txt

If you do not yet have a requirements.txt, use:

pip install dearpygui numpy pandas scipy matplotlib plotly pillow h5py silx scikit-optimize xraydb xrt mp-api

4. Patch xrt with the custom screens.py

After installing xrt, copy the patched file from this repository:

xrt_update/screens.py

into your Python environment here:

Lib\site-packages\xrt\backends\raycing\

So the final target file becomes:

Lib\site-packages\xrt\backends\raycing\screens.py

This step is required because SpecTwin uses a customized version of screens.py for the digital twin workflow.

5. Check bundled resources

Make sure these folders remain next to the source code:

• fonts/
• img/
• AutoFDMNES/fdmnes_Win64/

The application expects these files at runtime.

---

Running the application

From the Source folder:

cd Source
python StartScreen.py

Alternatively, to open the main application directly:

cd Source
python SpectwinMain.py

---

Modules

Start screen

StartScreen.py opens the landing page and launches the main application.

Main control panel

SpectwinMain.py provides access to the core modules:

• DigitalTwin
• VisualizeData
• ProcessData
• SubPixelResolution
• Merge .h5/.evt Files
• AutoFDMNES

AutoFDMNES

The AutoFDMNES module supports:

• material lookup
• CIF retrieval
• FDMNES input generation
• EXAFS/XES simulation setup
• output/job management

Digital Twin

The digital twin module is built around xrt and is used for simulation-driven geometry and analyzer optimization.

---

Notes on FDMNES

This repository includes Windows-specific FDMNES binaries under:

Source/AutoFDMNES/fdmnes_Win64/

---

Materials Project API

The AutoFDMNES module uses the Materials Project API for CIF retrieval.

The key need to enter in mpr.py

Source/AutoFDMNES/mpr.py

---

Troubleshooting

Font file not found

Run the application from the Source directory so that relative paths to fonts/ and img/ resolve correctly.

ModuleNotFoundError

Make sure the virtual environment is activated and all packages are installed.

xrt simulation errors

Verify that the patched screens.py was copied into:

Lib\site-packages\xrt\backends\raycing\

FDMNES does not run

Check that fdmnes_win64.exe exists in:

Source/AutoFDMNES/fdmnes_Win64/
