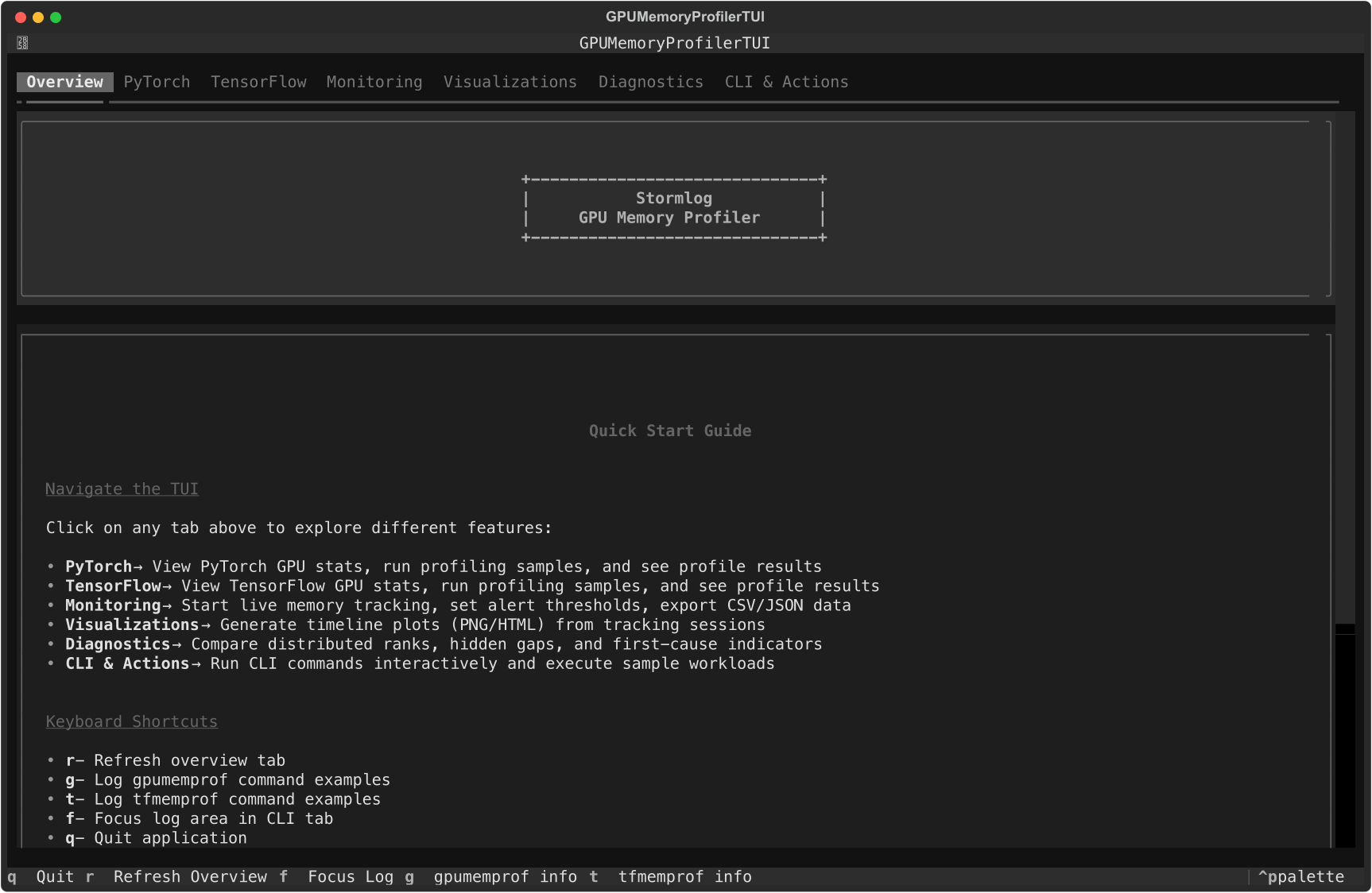

Current Overview tab from the shipped Textual interface.
Stormlog is a memory-profiling toolkit for day-to-day PyTorch and TensorFlow work. It combines Python APIs, CLI commands, and a Textual TUI so you can move from "what is using memory?" to saved artifacts and shareable diagnostics without switching tools.
Long-running track and diagnose flows are session-aware, so one capture can
be reconstructed deterministically across sink segments, diagnose bundles, and
OOM flight-recorder artifacts.
For task-oriented operational guidance, use the Production Cookbook. The highest-signal entry points are the Always-on Tracking recipe, Incident Playbooks, and CI and Release Qualification.
- Catch memory growth before it becomes an OOM.
- Compare allocated vs reserved usage during training and inference.
- Export telemetry and diagnose bundles for CI or release triage.
- Load the same artifacts into a terminal UI for faster debugging.
- Keep workflows available on CPU-only and MPS systems, not just CUDA boxes.
pip install stormlog
pip install "stormlog[viz]"
pip install "stormlog[tui,torch]"
pip install "stormlog[torch]"
pip install "stormlog[tf]"
pip install "stormlog[all]"stormlog[all] installs every runtime extra: visualization, TUI, PyTorch, and TensorFlow dependencies.
stormlog is the distribution name on PyPI and the primary Python import root.
TensorFlow-specific APIs live under stormlog.tensorflow.
| Task | Use |
|---|---|
| Install the package | pip install stormlog |
| Launch the TUI | stormlog |
| Import PyTorch APIs | from stormlog import GPUMemoryProfiler, MemoryTracker |
| Import TensorFlow APIs | from stormlog.tensorflow import TFMemoryProfiler |
| Run CLI automation | gpumemprof or tfmemprof |
git clone https://github.com/Silas-Asamoah/stormlog.git
cd stormlog
pip install -e .
pip install -e ".[viz,tui,torch]"If you want both framework extras in a development checkout:
pip install -e ".[dev,test,all]"The examples/ package and Markdown test guides are source-checkout only. A
plain pip install stormlog does not include them.
This is the fastest path to verify an environment and produce an artifact you can inspect later:
gpumemprof info
gpumemprof track --duration 2 --interval 0.5 --output /tmp/gpumemprof_track.json --format json
gpumemprof analyze /tmp/gpumemprof_track.json --format txt --output /tmp/gpumemprof_analysis.txt
gpumemprof diagnose --duration 0 --output /tmp/gpumemprof_diag
tfmemprof info
tfmemprof diagnose --duration 0 --output /tmp/tf_diagIf you reuse a sink directory across multiple runs, Stormlog separates those
captures by session_id and defaults analysis to the newest clean session.
GPUMemoryProfiler currently targets PyTorch runtimes exposed through
torch.cuda, which covers NVIDIA CUDA and ROCm-backed builds. On Apple MPS or
CPU-only systems, use MemoryTracker, the CLI, or CPUMemoryProfiler instead.
import torch
from stormlog import GPUMemoryProfiler
profiler = GPUMemoryProfiler()
device = profiler.device
model = torch.nn.Linear(1024, 128).to(device)
def train_step() -> torch.Tensor:
x = torch.randn(64, 1024, device=device)
y = model(x)
return y.sum()
profile = profiler.profile_function(train_step)
summary = profiler.get_summary()
print(profile.function_name)
print(f"Peak memory: {summary['peak_memory_usage'] / (1024**3):.2f} GB")TFMemoryProfiler works on GPU or CPU-backed TensorFlow runtimes.
from stormlog.tensorflow import TFMemoryProfiler
profiler = TFMemoryProfiler(enable_tensor_tracking=True)
with profiler.profile_context("training"):
model.fit(x_train, y_train, epochs=1, batch_size=32)
results = profiler.get_results()
print(f"Peak memory: {results.peak_memory_mb:.2f} MB")
print(f"Snapshots captured: {len(results.snapshots)}")- instrument a training step with
GPUMemoryProfilerorTFMemoryProfiler - switch to
trackwhen you need telemetry over time - export plots or analyze saved telemetry later
- capture
trackoutput or adiagnosebundle - open the same artifacts in the TUI diagnostics and visualizations tabs
- compare growth, gaps, and per-rank behavior before changing model code
- switch between discovered sessions instead of merging multiple captures from the same sink
These example-module commands require a source checkout plus pip install -e ..
- run
python -m examples.cli.quickstart - run
python -m examples.cli.capability_matrix --mode smoke --target both --oom-mode simulated - archive the emitted artifacts for later triage in the TUI
Install the optional TUI dependencies and launch:
pip install "stormlog[tui,torch]"
stormlogThe current TUI startup path imports PyTorch immediately, so stormlog[tui] alone is not enough yet.
The current TUI tabs are:
OverviewPyTorchTensorFlowMonitoringVisualizationsDiagnosticsCLI & Actions
Overview tab with current system summary and navigation guidance.

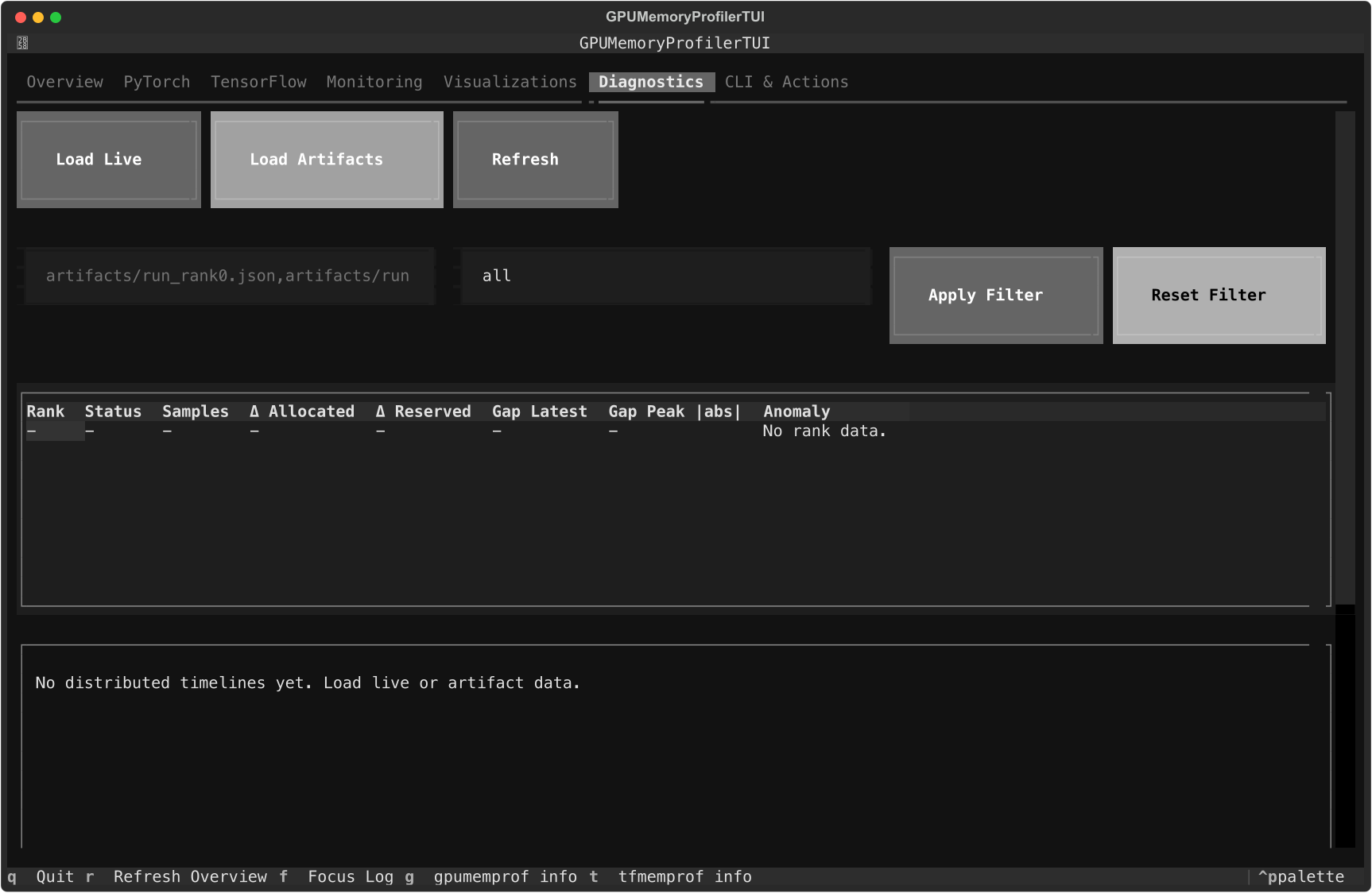

Diagnostics tab with the current artifact loader, rank table, and timeline panes.
Use the Monitoring tab to start live tracking, export CSV or JSON events to ./exports, and tune warning or critical thresholds. In Visualizations, refresh the live timeline and save PNG or HTML exports under ./visualizations. In Diagnostics, load live telemetry or artifact paths and rebuild rank-level diagnostics without leaving the terminal.
For screen-by-screen details, see the TUI Guide.
- Documentation home
- Installation guide
- Usage guide
- CLI guide
- Production cookbook
- Always-on tracking
- Incident playbooks
- CI and release qualification
- Examples guide
- Testing guide
- PyTorch guide
- TensorFlow guide
- Long-form article
These commands require a source checkout:
python -m examples.cli.quickstart
python -m examples.cli.capability_matrix --mode smoke --target both --oom-mode simulated
python -m examples.scenarios.cpu_telemetry_scenario
python -m examples.scenarios.oom_flight_recorder_scenario --mode simulatedIf CUDA is not available, Stormlog still supports:
gpumemprof infogpumemprof monitorgpumemprof trackCPUMemoryProfilerCPUMemoryTracker- the TUI overview, monitoring, diagnostics, and CLI tabs
See the CPU Compatibility Guide for the CPU-only path.
See the Contributing Guide and Code of Conduct.
